Setting up Office 365 Mail Delivery

Andy Chen Updated by Andy Chen

This article is outdated and no longer updated. Please see our article on Email Notifications for more.

Emails sent from DeskDirector to your customers can be configured either to use SMTP or using an Office 365 email account. v1.31 of the admin console (released 26th of Oct 2021) introduced the support for SendGrid email delivery.

This article guides you through the setting up email delivery using Office 365.

Before you start, these are what you need:

  • An account with Office 365 mail license assigned
  • A primary mailbox
  • A shared mailbox (supported since 6th of April 2020)

Office 365 Mail Delivery Setup Guide

1. To get started, login to your DeskDirector admin console and head to Email > Settings then scroll down to Office 365 Mail Delivery section and click "Setup Office 365 consent"

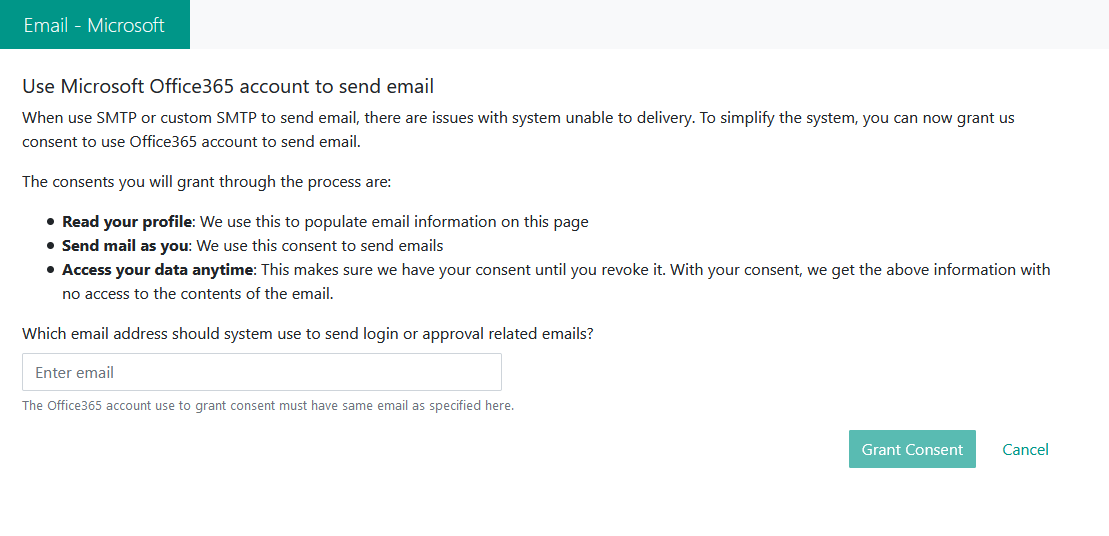

2. On the page, click the Grant Consent button then enter your primary Office365 email address and click the Grant Consent button again.

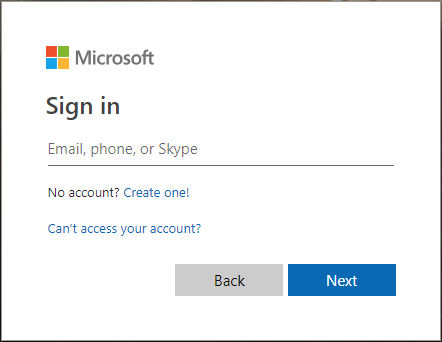

3. You will be lead to a sign in screen after granting consent, where you will need to enter your Office 365 password, then Sign in.

4. Review the permission required and click Accept.

5. Once you accepted the permission requested, you browser will be redirected back to DeskDirector Admin console.

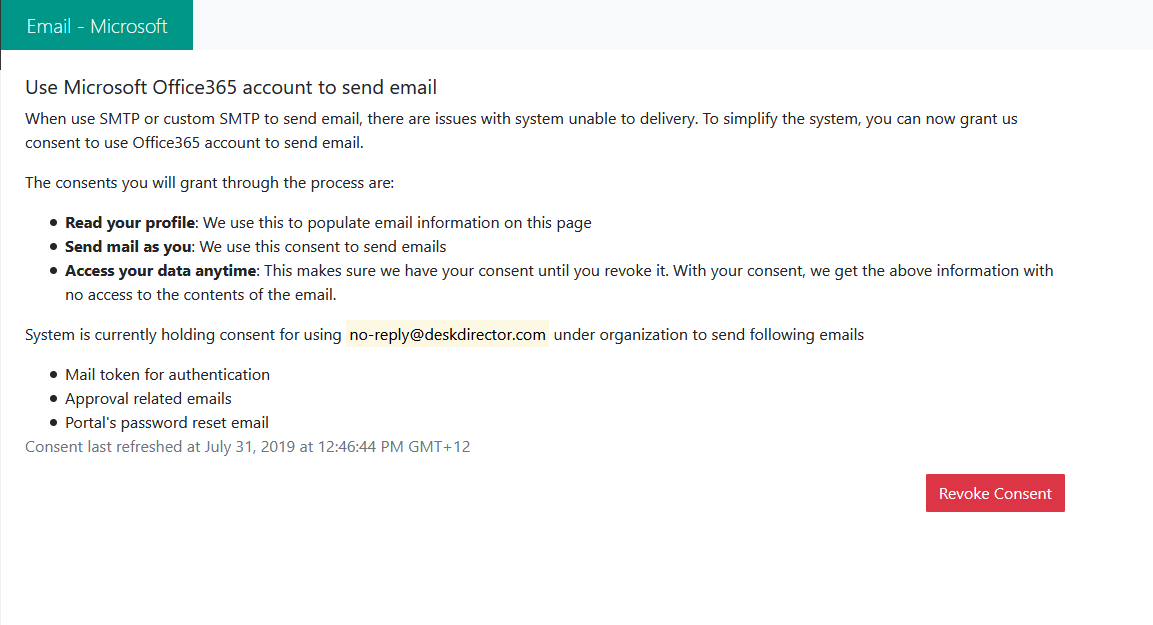

From there, you can verify the the email address that was setup to set emails from.

To remove an account, click the Revoke Consent button.

If you want to use a different Office 365 account, you may need to sign out the account you have signed in from www.office.com, then redo the setup.

6. Once consent has been granted, you have the option to setup/modify the sender email address and display for General Purpose and System Notification emails sent by your DeskDirector instance.

How to create shared mail

As a general best practice, the shared mailbox is needed, as this will be used to used out "System Notification" emails like password resets and login token requests (aka "No Reply" email addresses). Follow the guide below to setup the shared mailbox

To setup shared mailbox in Office 365 account, you need to have admin privilege.

1. Head to Office 365 admin page > Groups > Shared Mailboxes

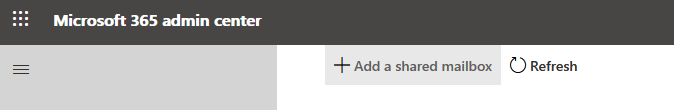

2. Click on Add a shared mailbox

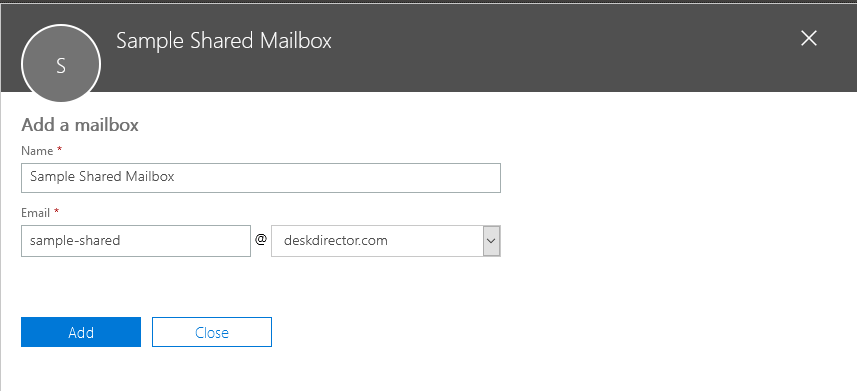

3. Provide the details needed to create the mailbox

4. Once the shared mailbox is created, all that is needed now is to add the primary mailbox as a member of the shared mailbox and enable the permissions for it.

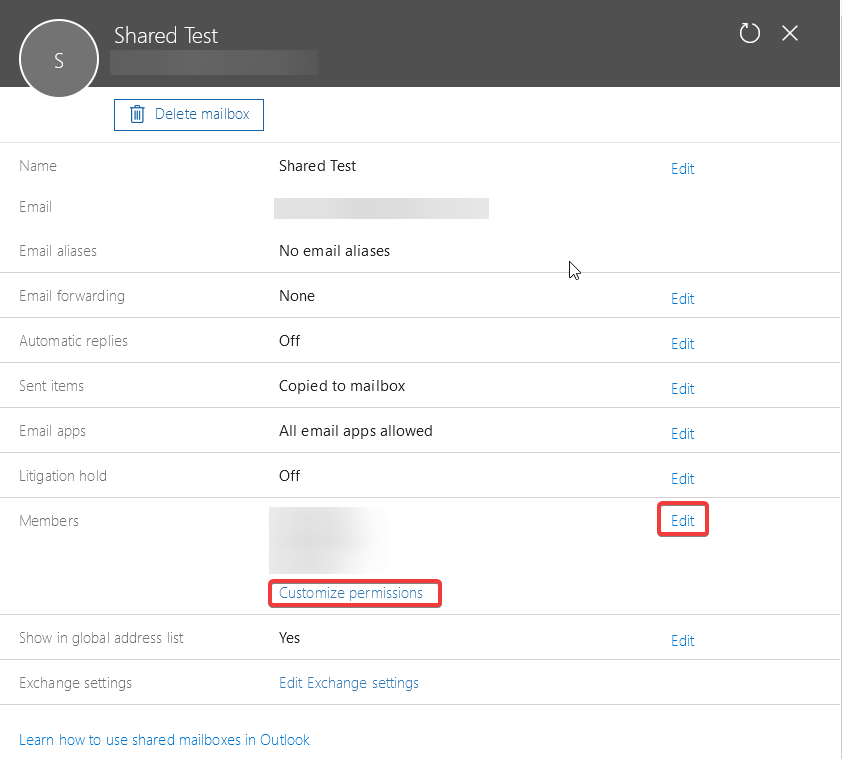

Click on the shared mailbox name and it should pull up a window which looks like this:

Click on Edit under "Members", then add the primary mailbox account to into the Shared Mailbox Members

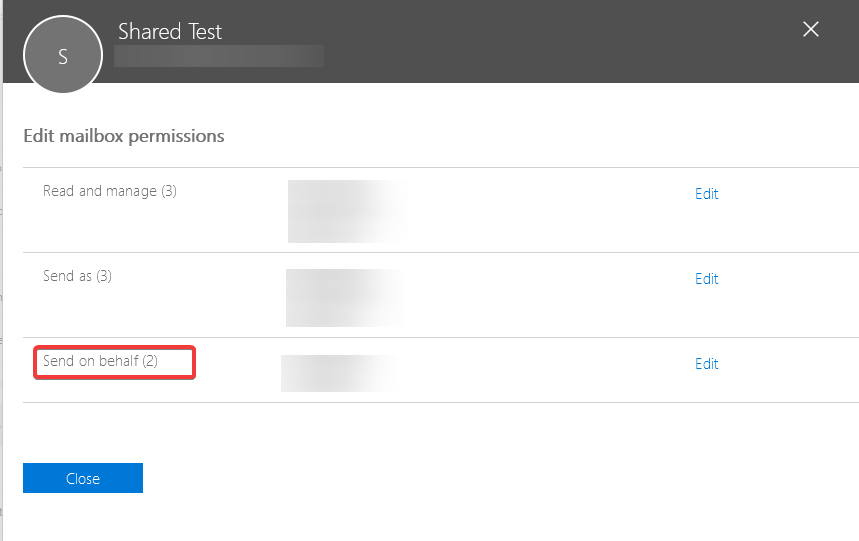

Go back to the main settings page, then review and doublecheck that the primary mailbox has the right permissions set under "Manage mailbox permissions". The primary mailbox only needs the "Read and manage permissions" and the "Send as permissions"

Office 365 Delivery Account - Tutorial

28 STEPS

1. Open DeskDirector Admin Portal and click Email.

Step 1 image

2. Click Delivery Accounts.

Step 2 image

3. Click New Account.

Step 3 image

4. Type the Name for your account.

Step 4 image

5. Click the Type drop-down.

Step 5 image

6. Select Office 365 Outlook.

Step 6 image

7. Click Create.

Step 7 image

8. Click Setup.

Step 8 image

9. Type in the primary email ID of this account.

Step 9 image

10. Click Grant.

Step 10 image

11. The Outlook authentication window will open. Type the password for the primary account.

Step 11 image

12. Click Sign in.

Step 12 image

13. Next, click No.

Step 13 image

14. After authentication, you will be redirected back to the account setup page.

Step 14 image

15. To setup the sender's email ID, scroll down and click Edit.

Step 15 image

16. Type the Display name.

Step 16 image

17. Type the email address.

Step 17 image

18. Click Setup to save the details.

Step 18 image

19. To setup the sender's no-reply email ID, scroll down and click Setup.

Step 19 image

20. Type the Display name.

Step 20 image

21. Type the email address.

Step 21 image

22. Click Setup.

Step 22 image

23. Next, scroll up and click the three-dot menu.

Step 23 image

24. Click Test.

Step 24 image

25. Now you can send a test email to check if the account is active. Type an email address.

Step 25 image

26. Click Send test email.

Step 26 image

27. If the email was sent, you will see the success message. Click Cancel to close this window.

Step 27 image

28. That's it. You're done.

Step 28 image

** Best experienced in Full Screen (click the icon in the top right corner before you begin) **

https://www.iorad.com/player/2349855/Create-an-Office-365-delivery-account
