Dynamic Form Content

Dynamic Content

Dynamic content is similar to dynamic fields, where our form will hit an API defined by you and render content based on your API's result. It is a great way to display custom content at the time of user filling the form. It is secure and customizable.

Similar to Microsoft's Adaptive card, it can render different types of content based on the API result.

API Design Blue Print

The API you create should meet following requirements:

• Your API should accept POST request calls
• Optionally, can consume access_token and ticketId from POST request's JSON body payload to see who is submitting the form, and which ticket it belong to. That way you can render more customized content.
• Respond with correct CORS header. This is because our API will be under different a host to our Client Portal, thus browser will ask your permission to allow our client portal to view the response. Without correct CORS header within HTTP response, our Client Portal won't be able to render any content.
• Valid response format (see below).

Example: HTTP Request Initialized by Client Portal.

POST https://your.host/path
Origin: https://xxx.deskdirector.com
Content-Type: application/json

{
    "ticketId": 3032,
    "access_token": "token",
    "access_token_expiration": 3600
}

Example: HTTP Response From Your API

HTTP/1.1 200 OK
Access-Control-Allow-Origin: *
Content-Type: application/json

{
    "value": [
        {
            "type": "markdown",
            "text": "### Content you would like to **render**.",
            "color": "accent"
        },
        {
            "type": "list",
            "value": [
                {
                    "title": "Title of the list item",
                    "description": "Optional description",
                    "url": "https://your.host/optional/link"
                },
                {
                    "title": "Second item without link",
                    "description": "Optional description"
                },
            ]
        },
        {
            "type": "stats",
            "value": [
                {
                    "title": "Num of open tickets",
                    "value": "34",
                    "color": "accent",
                    "secondary": {
                        "value": "from 100",
                        "color": "light"
                    }
                }
            ]
        }
    ],
    "request": {
        "ticketId": 3032
    }
}

Response Definition (TypeScript)

Below is an example in TypeScript that would produce the above example API response:

interface ContentRequest {
    ticketId?: number;
    access_token: string;
    [key:string]: string[] | number | string;
}

type ContentType = 'list' | 'stats' | 'markdown';
type ContentColor = 'default' | 'accent' | 'good' | 'warning' | 'attention' | 'light';
type Content = ListContent | StatsContent | MarkdownContent;

interface ContentResponse {
    // maximum of 5 contents.
    value: Array<Content>;
    request: ContentRequest;
}

// List
interface ListItem {
    // max length of 200 chars
    title: string;
    // max length of 1_000 chars.
    description?: string;
    url?: string;
}

interface ListContent {
    type: 'list';
    // max of 30 items
    value: Array<ListItem>;
}

// Stats
interface StatsItem {
    // max of 50 chars
    title: string;
    // max of 50 chars.
    value: string;
    color?: ContentColor;
    secondary?: {
        value: string;
        color?: ContentColor;
    }
}

interface StatsContent {
    type: 'stats';
    // max of 30 items
    value: Array<StatsItem>;
}

interface MarkdownContent {
    type: 'markdown';
    // maximum of 5_000 chars.
    text: string;
    color?: ContentColor;
}

Rendered Example

Dynamic Fields

Dynamic fields provide a way to add and display dynamic content within your DeskDirector forms.

Usage & Limitations

Before continuing, it's important to provide some context regarding what these dynamic fields can and can't do.

• The dropdown menu for a dynamic field can display up to 30 items.
• Each item's name is limited to a maximum of 100 characters and must be a string.
• Each item's identifier is limited to a maximum 50 characters and must be a string.

Web Service (API) Design Blue Print

Request (GET or POST):

https://{domain}/{path}?{query parameters}

Query parameters or properties in JSON body payload

• term Search term, use for type-ahead system
• ticketId Ticket ID that form is attached to
• access_token Access Token is an JWT token, where web service can use to gather user information. Such as user ID, email, company ID etc. It can be verified through an public hash key.
• access_token_expiration How long before access token expires (Number in seconds).

Example of GET request is:

https://test.deskdirector.com/api/v2/ddforms/dynamic/contacts?term=john&ticketId=&access_token={token}

Example of POST request is:

POST request is more secure than GET request. Since anything within body payload been encrypted and secured by HTTPS. In comparison, anything passed through query parameters is in plain text and easy to read by malicious actors. Thus, access token is better passed through HTTP request bo\dy.

// POST https://host/api/path

{
    "term": "john",
    "ticketId": 3032,
    "access_token": "token",
    "access_token_expiration": 3600
}

Response

The response payload must be according to following JSON schema. It is case insensitive:

{
  "value": [
    {
      "name": "max length of 100 chars",
      "identifier": "max length of 50 chars"
    },
    {
      "name": "max length of 100 chars",
      "identifier": "max length of 50 chars"
    }
  ],
  "request": {
    "term": "search term",
    "ticketId": number
  }
}

Fallback "Other" Choice

Due to the inherently unreliable nature of web services, an escape option is provided to the user for all dynamic fields. This is so a user won't be prevented from completing a form in the event of API failure or the inability to find the correct choice (e.g. the contact they are looking for is not presented in the list, even though it should be).

The format of the other choice will be:

{
    "name": "Other",
    "identifier": "{field_identifier}_other",
    "selected": true
}

In the case where the "Other" choice is selected, a new choice will appear in the choices collection on the field and their answer will be placed into the value property on the field.

Example:

{
    "type": "api_single_choice",
    "name": "Choose a contact",
    "identifier": "d4ptmn",
    "required": false,
    "choices": [
        {
            "name": "Other",
            "identifier": "d4ptmn_other",
            "selected": true
        }
    ],
    "meta": {
        "render": "radio"
    },
    "value": "Bob Smith"
}

Error Response

Any service API error should be according to the following schema. If the error format is incorrect, the portal should display generic error.

{
 error: string,json
 errorDescription: string
}

If an error is returned from the API, the form will allow the user to skip the question. They will be presented with an "Other" choice.

The error will be reported to Application Insights.

{
 "name": 'DynamicFieldError';
 "customDimensions": {
  "form_entity_id": string;
  "field_identifier": string;
  "field_type": 'api_multi_select' | 'api_single_select';
  "url": string;
  [queryParamKey: string]: string;
 }
}

Deliver Answer from Previous Fields

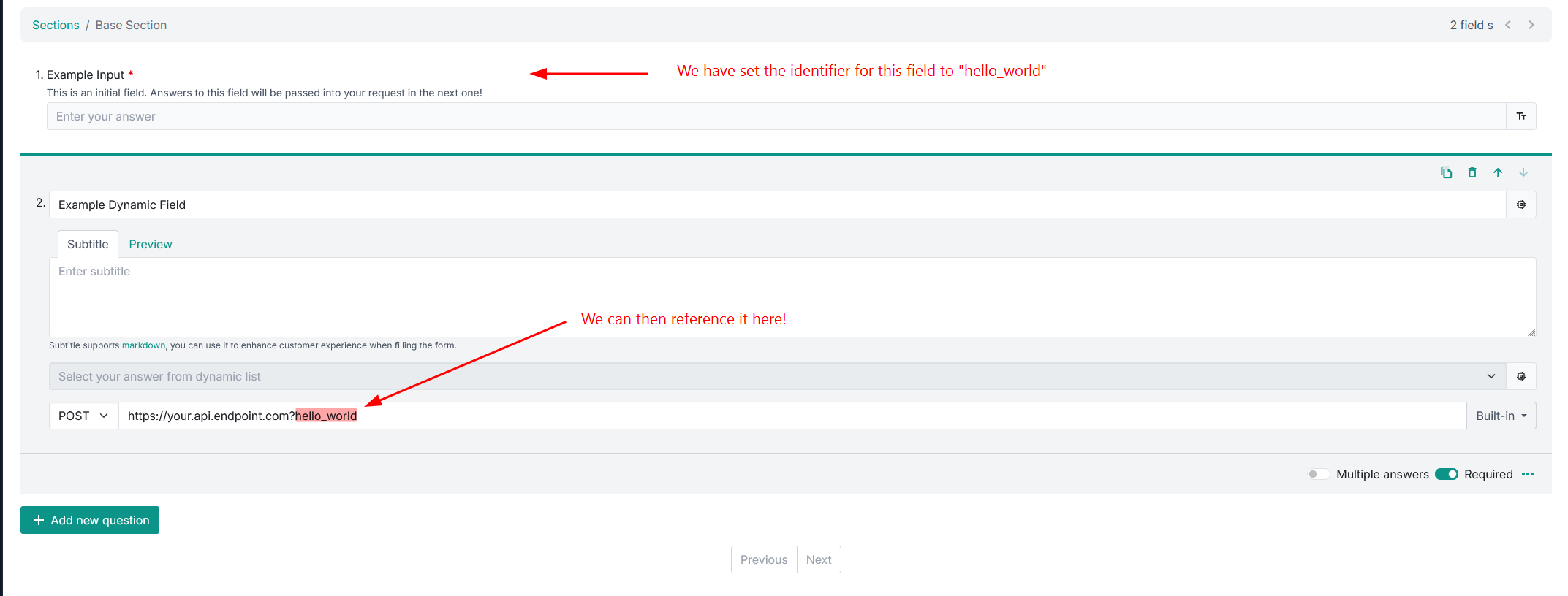

Dynamic fields are able to deliver answers from previous fields. To achieve delivery of answers to the target API, you should specify previous field identifier as query parameter.

• Field has to be before current field. It can be from previous sections.
• It can be any field, include other dynamic fields
• Field identifier should record as parameter key inside API URL.

Using the built in priorities API as an example:

/api/v2/ddform/dynamic/priorities

For the identifier for each field, you can navigate to webhook page of the given the form. On that page, it will breakdown all sections and fields with their associated identifiers.

To access webhook page, open the dropdown from top right corner of form editor, and open webhook page in another tab.

To add birthday and select the user's answer to 'priority request', we should translate API URL from above to:

/api/v2/ddform/dynamic/priorities?epzipi&l2lunn

'Select priorities' field should now able to pass selected contact ID and birth day value to given API.

For example:

/api/v2/ddform/dynamic/priorities?epzipi=1985-03-20​&​l2lunn=203

Implementation Example

Using dynamic fields in DeskDirector forms requires an API endpoint to be created. This may be a barrier to people who don't necessarily have the time or expertise to develop such an API. In this section, we will be going through a simple endpoint implementation using Power Automate, with our data source being an Excel sheet in Excel Online.

Prerequisites

• Power Automate licensing with access to standard connectors.
  • For this example, we are only using a standard connector: Excel Online (Business)
• Download the source Flow template and Excel sheet (click to download)
  • DD Forms - Dynamic Fields API Example with Excel-v1.0.0.zip
  • Dynamic Field API Example - Data Source.xlsx

Video Guide

Step by step guide in video form. No audio.

Step by Step Guide

1. Upload the Excel file into a document library in one of the supported locations as specified by the Excel connector: OneDrive for Business, SharePoint Sites, Office 365 Groups. We are using SharePoint in this demo.
2. Create an Excel Online (Business) connection in Power Automate. The account you use needs to have access to the document library where you saved the Excel file
   Tip: use service accounts for all connections and flow ownership
3. Import the flow in Power Automate
   1. Upload the template zip file and map the required connection.
   2. The import is expected to fail as the Excel action placeholders point to a non-existent file. Click 'Save as a new flow' to continue. This should open up the flow editor.
   3. Find the 'List rows present in a table' action. Navigate to the source data table in the Excel sheet. The table is called 'DatesTable'.
   4. Save.
   5. Copy the HTTP trigger endpoint URL. Needed in next step.
   6. Turn on the flow.
4. Create a form in DeskDirector
   1. Add a new field of Dynamic type. It should be at the bottom of the dropdown menu.
   2. Change the HTTP method to POST.
   3. Remove the / from the input box before pasting the HTTP trigger endpoint URL in.
   4. Save.
5. Create a request type in DeskDirector
   1. Attach the form you just created.
   2. Enable the request type.
   3. Save.
6. Test the dynamic field in Portal
   1. Impersonate a Portal user from the admin console
   2. Find the request type. Click on the field without typing to see the top 30 dates. Type something to search, e.g 'Monday'.
   3. Exercise for the reader: The dates are currently returned in descending order. Try edit the flow to show the dates in ascending order.
7. Congratulations! You have now implemented a dynamic field API endpoint for DeskDirector forms.

Pros & Cons of Using Power Automate Over a Bespoke API

Pros:

• Fast to implement, low code
• Easy to deploy and maintain
• Connectors to other Microsoft and third party services. Any potential auth is managed within Power Automate.

Cons:

• Slow due to action overhead
• May get capped by action limits if endpoint is busy
• Limitation of available data actions and expressions may require you to do clunky workarounds/hacks for things that are trivial in code

Conclusion

You should now have some basic understanding of what is required to implement an API endpoint for a dynamic field, along with a working, practical example that you can build out from.

This template, along with others are also available in our template gallery.

Frequently Asked Questions:

"What happens to an API response that contains more than 30 items?"

From a user experience point of view, too many items will give the users a hard time to scan through, this is why the dropdown of a dynamic field will only display first 30 items. It is best to provide search capability at API level if there are more than 30 items."

"What if one of item has name more than 100 chars?"

Dropdown of the dynamic field is limited to display 100 chars only. Extra characters will be chopped off upon form submission.

"What if one of item's identifier has more than 50 chars?"

Similar as name, on form submission, extra characters will be chopped off.

"What if the identifier is essential and it is more than 50 chars? What can we do about it?"

You can hash those identifiers into a fixed length, then store it inside a key value pair data table.

"What if dynamic field is required, but the given API is broken or throws an error?"

Forms would allow submission without answer from the API. The error would be submitted alongside the ticket.

"Adding previous field identifier to dynamic field seems complicated - are there any improvements planned?"

Yes, we are planning to improve UI/UX to support that, once implemented, you no longer have to specify identifier inside the API URL, until it's implemented, parameter key is an alternative way to achieve it ahead of admin portal improvements.

"I can't find the request type in the Portal."

Make sure the request type is enabled and the contact you are impersonating has access to it.

"In the Portal, the dynamic field returns 'No results' or 'Something went wrong with this question'".

This could one of many possible reasons. If you are familiar with your browser's dev tools, it is easy to check if your endpoint was successfully called and diagnose the issue. In the image below, the error is because the endpoint is not available (either off or doesn't exist anymore)

If you are not familiar with dev tools, you could check the following:

• Is the flow on?
• Is the HTTP method set to POST?
• Did you remove the / (forward slash) from the URL input box before pasting in your own endpoint? If the forward slash is still at the front, it gets treated as a relative URL, and the dynamic field will try call an endpoint that looks like this: https://subdomain.deskdirector.com/https://prod-06.australiasoutheast.logic.azure...
• If your flow is on and was triggered (there is run history), then check the run logs for any issues.

"The property name within responded JSON payload, is it case sensitive?"

Yes, it is case sensitive.

"What happen to items or properties that has exceeded limit?"

Our client portal will truncate any additional chars or items.

"Why do we need dynamic content rather than put iframe inside field's description?"

iframe inside Markdown is an insecure content. We have recently disallowed any raw HTML to be rendered inside markdown. Even though you can claim your code and your responsibility, but when things go wrong, you will definitely fall back to us.

"Will dynamic content able to refresh based on the answer from other field?"

No, not at moment. For now, you can put field ID within your API URL's query parameter, we will pass the value to your API at the time of rendering. Thus, content based on previous section is the way to go.

"How do we add field ID from previous section to the statement content API query?"

Depends on your API URL, whether it already contains query parameter or not. I will give two examples below. The field ID we will use field_id_one and field_id_two as an example. Purple part is your API URL, where pink suffix is the additional query parameter we have added.

https://your.api.domain/path?field_id_one&field_id_two

https://your.api.domain/path?your_query=xxxx&another_query=yyyy&field_id_one&field_id_two

"Where can I setup dynamic content?"

You can setup within statement field. Statement field was originally designed for content play. Thus, it make sense to introduce under that field.

"Have you considered to allow dynamic content under other field?"

No, not at moment. Since dynmaic content allow multiple content to be return and rendered. Too many content could impact readability of form field.
